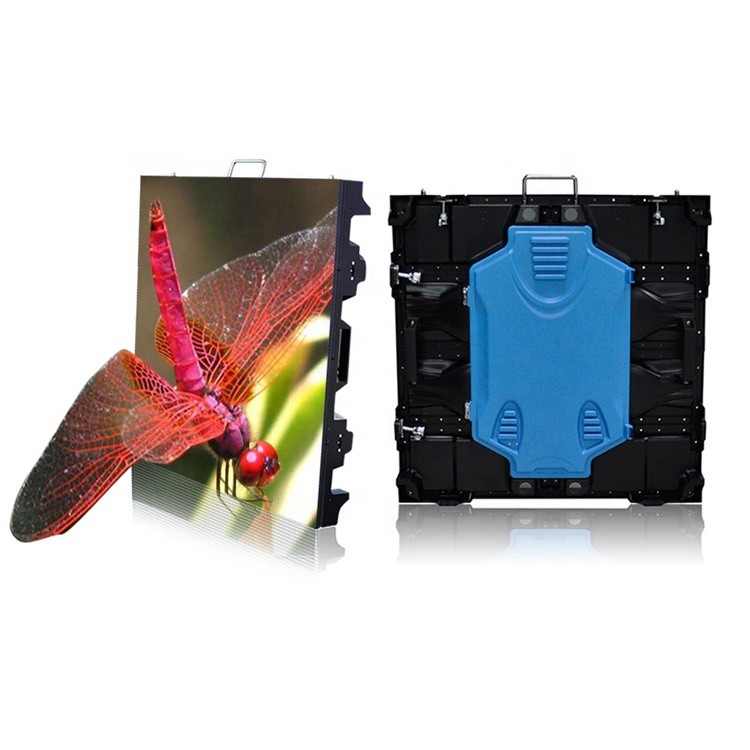

500*500mm P3.91 Rental Outdoor Stage Full Color Led Display 10ft X
12ft 4x3m Led Screen Price
Application:
1. Advertising LED display screen
LED display can perfect combine text, pictures, video. Commerical
adversting.
Applied in main street, shopping mall, Plaza Park, outstanding
buildings, landmarks, airports, stations and so on.
2. Stadium LED display screen
In stadium to live show, video play, slow motion playback, specific
lens display, sports score information presentation.
Use in football field led screen fence, basketball stadium center
screen, and screens in swimming stadium, Athletics stadium.
3. Stage rental LED display screen
Easily installed, removed and transport.
Widely used in stage show, concert, theater, party, and other
entertainment event as background.
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 |
| LED parameters | R WL(620-625NM)
IV:(600-800mcd) | G: WL:(520-524nm)
IV:(1400-1800mcd) | B:WL:(470-472nm)
IV :(800-880mcd) |
 |
Cabinet Specification
| Dimensions (WxH) | 500mm x 1000mm | Module Quantity | 8 |
| Physical Resolution(WxH) | 128 x 256 dots | Physical Pixels (Total) | 32768 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
 |
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*1000mm |
| Cabinet resolution | 128*256dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current,
heat-dissipated roller fans with automatic temperature-controlling
device.
9 .Life time >11 years;
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for
the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working
days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order
and arrange a shipping agent. It usually takes 20 30 days on the
sea. a few days for customs clearance
