P6 Outdoor Big Advertising Billboard LED Display Die Casting
Aluminum Cabinet Video Wall
LED Display Parameter
| Item | Technical parameter |
| Panel | Dimension | (W)192mm*192mm(H) |
| Pixel pitch | 6mm |
| Pixel Density | 27777dots/ M2 |
| Pixel configuration | 1R1G1B |
| LED specification | SMD3535 |
| Pixel resolution | (W)32 dots*32dots(H) |
| Average power | 10W |
| Panel weight | 0.37KG |
| Cabinet&Bracket | Cabinet size | 960mm*960mm |
| Quantity of panel | 27.126PCS/M2 |
| Best viewing angle | H:>170 V:>120 |
| Best viewing distance | 6-100M |
| Working temperature | -25 -- +55 |
| Panel power supply | 5V40A |
| Screen power supply | AC220V—AC250V |
| Max power | 600W/M2 |
| Average power | 300W-500W/M2 |
| Technical parameter | Driving device | 16206 Constant current drive |
| Drive type | 1/8 Scanning |
| Refresh frequency | 1920HZ/S |
| Display color | 4096*4096*4096 |
| Brightness | 6000-7000cd/ M2 |
| Life span | 100000Hours |
| Communication distance | 100M |
Product Feature:
1)Front or rear maintenance option, realizing module, power supply
and receiving card front or rear maintenance, saving your
maintenance cost.
2)Adopt top high brightness with low power consumption LED
lamp,energy saving≥30%, if adopt 28 kinds of main patent technique,
entire energy saving ≥50%, environment protection.Pioneer in
outdoor mature HD LED Display, all advanced specifications 2 years
earlier than others, successful cases around the world.
3)Free back service path for all kinds of installation
surroundings.Broadcast level color scale, color temperature and
brightness adjustable intelligentizedly, smooth color, high color
ratio, nature pictures.

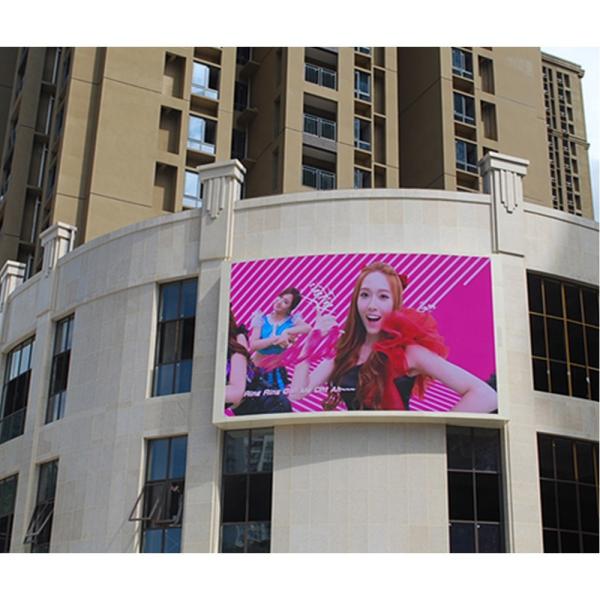

4)It can be curved into different shape to fit convex or concave wall
or rugged wall or building, and it can be shaped into column to wrap pillars for animation decoration.

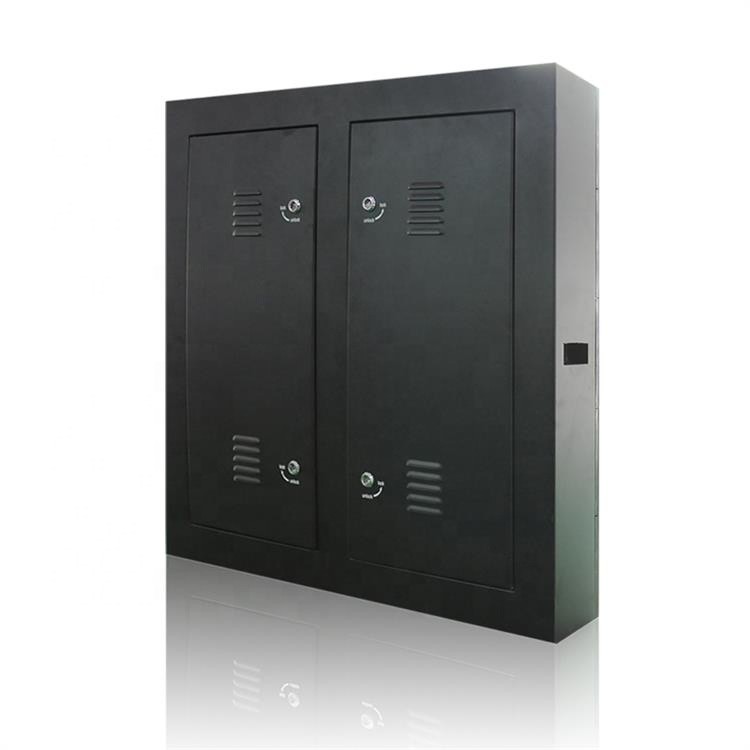

Die casting Aluminum cabinet than the general cabinet advantages:
1. Light weight: per square box weighs only 24kg, single box weighs
8KG, single person can be a single hand, saving installation time;
2. Thin box: box with die casting aluminum, high strength,
toughness, high precision, easy deformation, its thickness is only
80mm;
3. Screen Ping: surface flatness error less than 0.2mm, the
effective elimination of mosaic;
4. Disassembly fast: the box is connected up and down with fast
locking mechanism, pull the two handles 90 degrees to lock the two
cabinet, 10s to complete a cabinet installation, high mounting
accuracy. Enclosure and wiring connection fast and reliable, that
is beautiful in appearance but also to achieve a real sense of the
rapid disassembly;
5. Easy maintenance: modular design, installation and removal easy
assembly Screen anywhere, simple to maintain
6. Tolerance: a new structure designed to meet the lifting of
laminated requirements to meet indoor and outdoor requirements. Box
single, compatible with a variety of pitch, indoor-outdoor module
compatibility
7. High gray high refresh rate design,gradation 14 bit,refresh rate
above 960Hz
8. Low excellent thermal design and cooling performance, without an
external fan, air conditioning, low noise; light box weight, low
installationcosts required; Low cabinet power consumption, saving
operating costs.
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for
the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working
days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order
and arrange a shipping agent. It usually takes 20 30 days on the
sea. a few days for customs clearance
