Module Specification:
| Dimensions(WxH) | 320×160mm | Resolution(WxH) | 160×80dots |
| Pixel Pitch(mm) | 2 | Pixel Density | 250000 pixels/m2 |
| Pixel Configuration | SMD 2121 |
| LED parameters | R WL(620-625NM) IV:(600-800mcd) | G: WL:(520-524nm) IV:(1400-1800mcd) | B:WL:(470-472nm) IV :(800-880mcd) |
 |
Cabinet Specification:
| Dimensions (WxH) | 640mm x 480mm | Module Quantity | 6 |
| Physical Resolution(WxH) | 320 x240 dots | Physical Pixels (Total) | 76800 |
| Weight/Cabinet | 8KG | Material | Die-Castiing aluminum |
 |
LED Display Parameter:
item | value |
Pixel Pith | 2mm |
Module Size | 320mm×160㎜ |
Module Resolution | 160×80 dots |
Cabinet Size | 640mm×480mm×58mm |
Cabinet Resolution | 320×240 dots |
Resolution | 250000 dots/㎡ |
Brightness | ≤800cd/㎡ |
Refresh Frequency | 1920Hz |
Grey Level | 16bits |
Driving Mode | Constant current |
Avg Consumpation | 260W/㎡ |
Max. Consumpation | 650w/㎡ |
Input voltage | AC110-240 |
Viewing Distance | 2-60m |
viewing Angle | Horizontal 140deg. Vertical 140deg. |
Lifetime at 50% brightness | 100,000 hours |
Operating temperature | -20℃ ～ +55℃ |
Operating humidity | 10％ ～ 90％ |
Source compatibility (with video processor) | HDMI, HDSDI, SDI, VGA, RJ45, YC |
1. High refresh rate: 3840Hz, which can make clearer and vivider piture,No chromatic

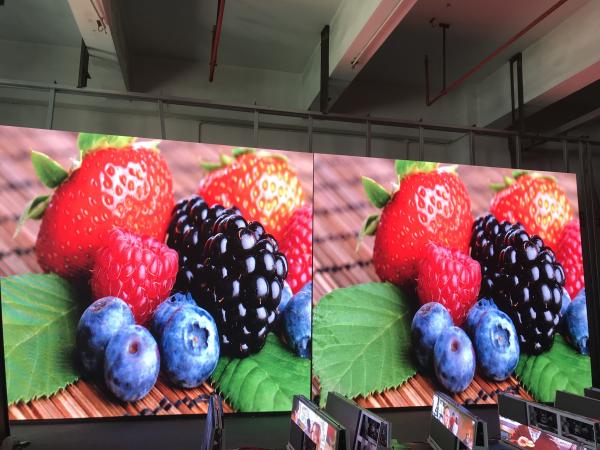

2. Seamless Assembly:Made through CNC,Assembly accuracy 0.1mm
3. Easy to move and fast installation: Light weight, Die-casting Aluminum Cabinet,Lighter and Slimmer
4. Fully-front service, very suitable for wall-mounted installation
5. Option for rental events solution
Product Description
1. Convenient Usage
The screen can get signal of camera, video, laptop, TV etc.
2. High Quality
SMD2121 or SMD1515 LED Chip, wide viewing angle, perfectly matching
with events,exhibition and concerts etc.
3. Super Light and Slim
The cabinet is light in weight so it's easy for you to install it
and convenient for delivery.
4. High Refresh Rate
The refresh rate is more than 38400 HZ so the screen picture is
clear wihtout flicker and distortion, thus to protect your eyes
5. Less Noise Design
The air fan free to eliminate noise; Al Materials can improve the
heat emission, meeting the demands of less noise in the indoor
occasions.
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for
the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working
days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
