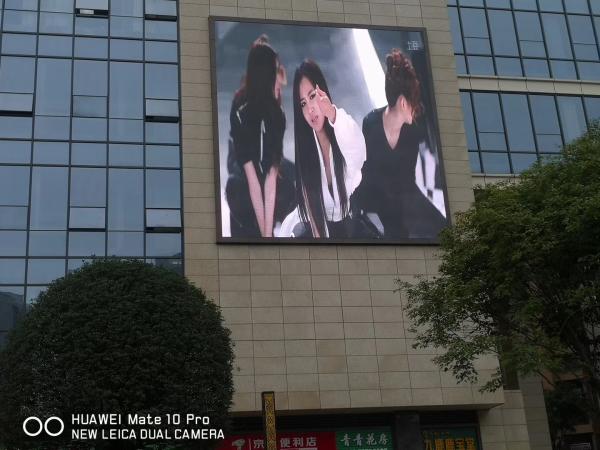

P4 RGB Module display , IP65 Waterproof LED Advertising screen for
outdoor advertising
The 160*320mm P4RGB module is the replacement for P10 LED Screen
also. It's with same size as P10 LED,
but with more dense LED arrangement which makes the LED Signs is
more clear than P10 LED Display. The LED
Screen adopts physical and virtual pixel technology which makes the
picture more clear and vivid, no flicker and
blind dots. The LED Screen is with IP65 waterproof and dust proof
cabinet design, and with super high brightness
LED, so it works well in rain and sunshine day. With lock design,
it can be installation friendly as well.
Features:
1: Module size for P4RGB LED module is 160*320mm
2: High brightness 5000mcd which can be seen in daytime
3: Programmable software, support world language text, photos and
video.
4: UL Certified Meanwell power supply has been used to make sure
realiable quality.

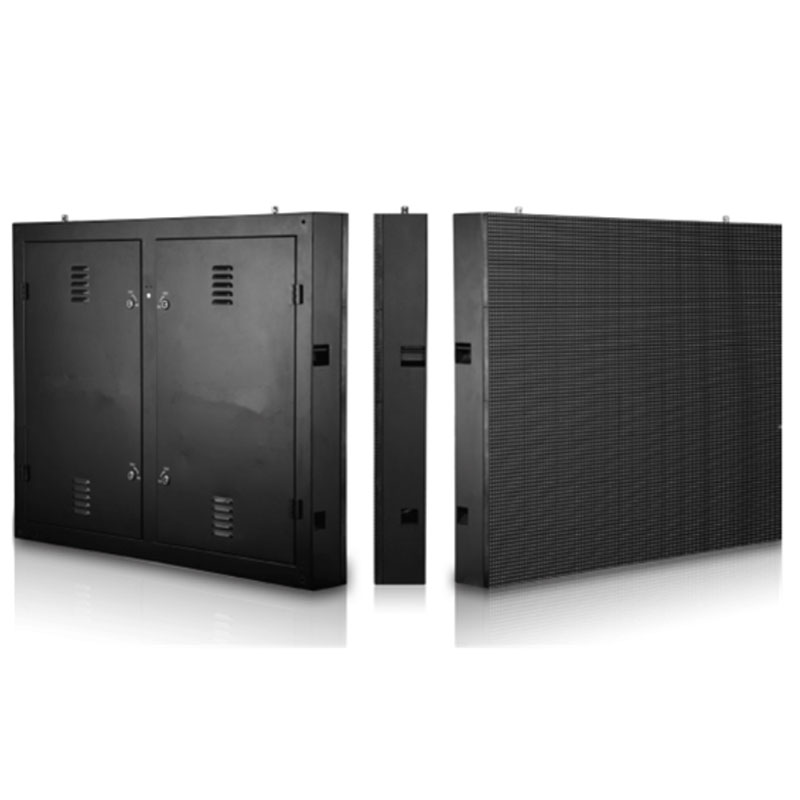

5: Standard steel cabinet with easy installation design,
maintenance from back side. Available for aluminum cabinet
if needed
6: Standard cabinet size: 640*640mm, 960*960mm, welcome for
customized size.
Product Specs:
| Pixel Pitch: | 4mm |
| Pixel Density: | 62500mcd/square meter |
| Module size: | 160*320mm |
| Cabinet size: | standard is 640*640, 960*960mm |
| LED Type: | SMD2525 |
| Scanning mode: | 1/10 scanning |
| Cabinet material: | Aluminum / steel |
| IP Grade: | IP65 |
| Life span time: | ≥100,000 Hours |
| Refresh frequency | ≥500HZ |
| Power consumption: | Avg.:500W/㎡ |
| Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Interface: | Standard Ethernet |
| Video input(w/video processor): | DVI, HDMI, PAL/NTSC/SECAM;S-Video;VGA;Composite etc. |
| Input voltage (AC): | 220~240V/AC(±10%) or 110V /AC |
FAQ:
A1: How is the waterproof level? Do we have to make one cover for
the LED Display to make sure waterproof?
Q1: Outdoor fixed led display is IP65, surface for the module is
glued already to prevent water in. And caibinet
design, it waterproof also, so the whole display is IP65
waterproof, no need to make other cover for the led screen
A2: Does the LED Display will come with air conditioner to cool the
tempature to make sure safety?
Q2: If bigger size LED Screen, better to make the air conditioner
at your side. And small size LED signs, the ventilation
cabinet design and fan power supply is enough for the heat
disspation.
Q3: How to make program for outdoor LED Video wall?
A3: Standard LED video wall is with enternet port and wifi
connection. Free software will be provided. Just need to fill in
the screen size, and upload video, send the program, the LED
Display will show update content.
